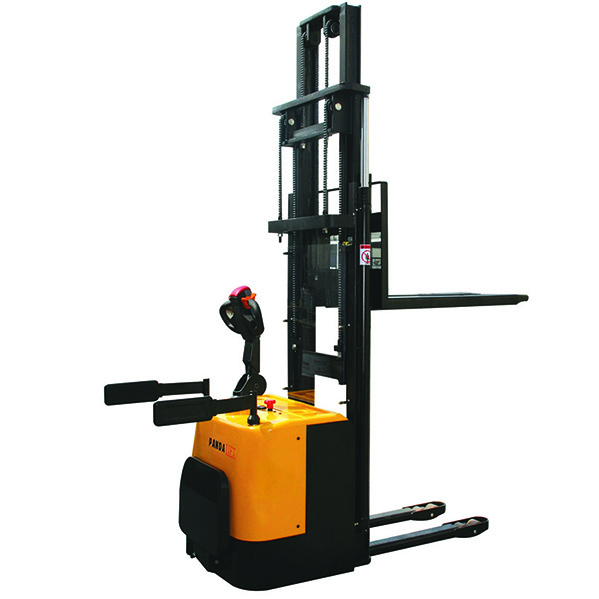

Full Electric Stacker CDD

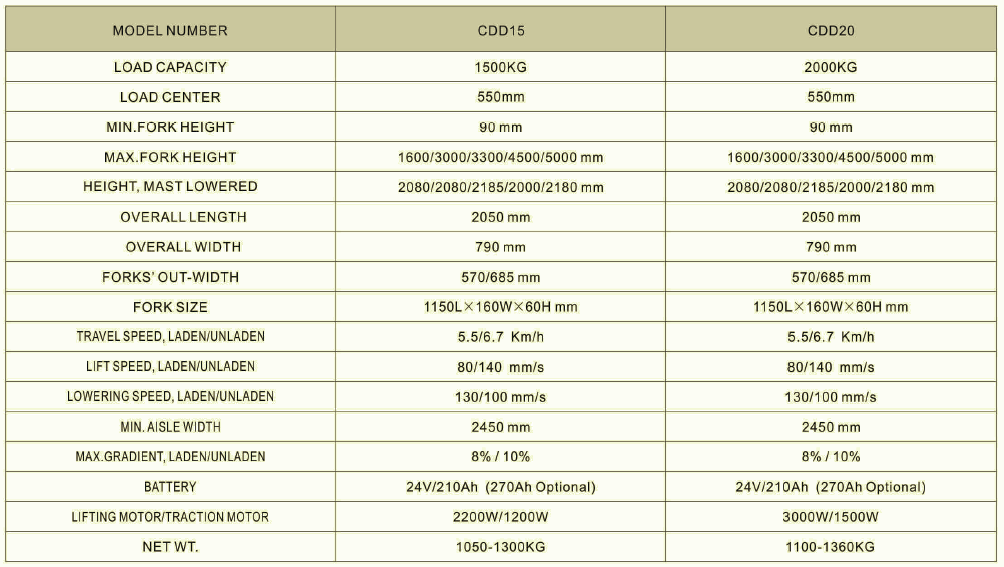

Load Capacity: 1500KG, 2000KG;
Load Center: 550mm;
Max.lift Height: 1600mm, 2500mm, 3000mm, 3300mm, 4500mm, 5000mm
Min.lift Height: 90mm;
Overall Width: 790mm;
Overall Length: 2050mm;
Fork Out-Width: 570/685mm;
Single Fork size: 1150×160×60mm;
Min. Aisle Width: 2450mm;
Battery: 24V/210Ah;
Lifting Motor: 2200W, 3000W;
Traction Motor: 1200W, 1500W;
