Rigid TPR wheel Caster

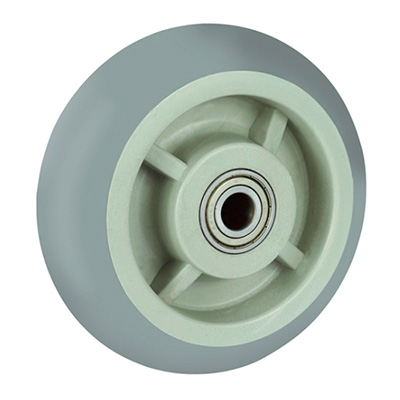

Heavy duty Caster, wheel material: TPR(Thermoplastic Rubber) tread bonded to Polyolefin core.
Wheel Diameter: 4",5",6",8", Wheel Width 2" ;
Housing: high strength 6mm thickness steel;
Load Capacity: 200KG-320KG;
Fixing type: Top Plate;
Swivel/Rigid: Rigid;
Brake device: without.

  1. Heavy duty Caster TPR tread bonded to Polyolefin core wheel, this caster is widely used on medium-duty to heavy duty cart, equipment,conveyors, portable work stations, Platform truck and other equipment.

    Features include zinc plated finish, full double ball hardened raceways, reliable, wear-resistant and non-marking TPR wheel.

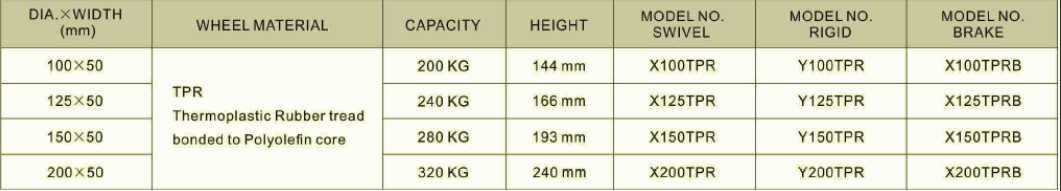

    Load Capacity: 200-320KG;

    wheel size: 100×50mm, 125×50mm, 150×50mm, 200×50mm;

    Fixing Plate: 115×110mm;

    Hole Spacing: 85×72mm;

    Fixing Height: 144mm, 166mm, 193mm, 240mm;


  2. Load Capacity: 200-320KG;

    wheel size: 100×50mm, 125×50mm, 150×50mm, 200×50mm;

    Fixing Plate: 115×110mm;

    Hole Spacing: 85×72mm;

    Fixing Height: 144mm, 166mm, 193mm, 240mm;
